PWM Solar Hybrid PCU

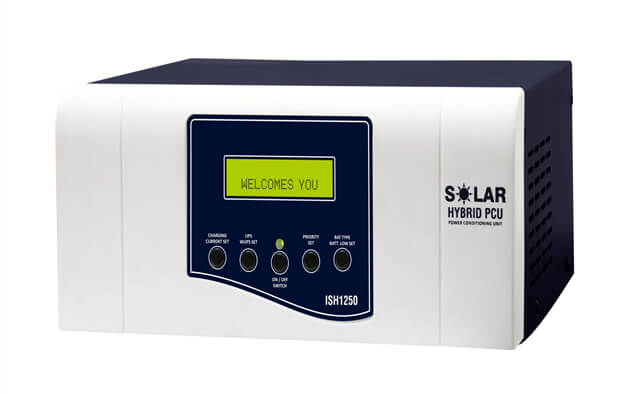

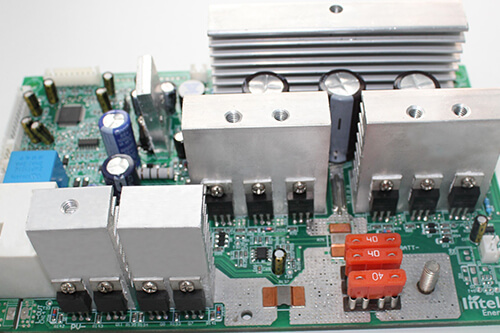

SOLAR HYBRID PWM PCU SERIES

SALIENT FEATURES

  • Pure Sine Wave Output Ensuring Noiseless Operation.
  • Built In Heavy Duty Solar Charge Controller.
  • Smart Battery Management System for Longer Battery Life.
  • Grid Charging Enable / Disable Option.
  • LCD Display With Front Switch Settable Options of Grid Charging Current, UPS/WUPS – Mains Voltage Range, Solar Priority, Battery Type and Battery low Settings.
  • High Surge Handling Capability for Mixed Load.
  • Protection Against Overload, Short Circuit, Back feed, Battery Deep Discharge.

PROGRAMMABLE USER SETTINGS

  • Mains Charging Current Selection.
  • Wide UPS & UPS Selection.
  • ON/OFF Switch Active / Inactive.
  • Solar Grid Battery Priority Setting.
  • Battery Type selection (Tubular/SMF, Flat Plate Lead Acid and Li-Ion) & Battery Low Cut Voltage Setting.

TECHNICAL SPECIFICATIONS OF SOLAR HYBRID PWM PCU SERIES

Solar Hybrid PWM PCU Series
ISH/DSH 1100 ISH/DSH1250 ISH/DSH1450 ISH/DSH1650 ISH/DSH1700 ISH/DSH2100
750VA/12V 925VA/12V 1050VA/12V 1200VA/12V 1500VA/24V 1900VA/24V
600W 740W 840W 960W 1260W 1500W
INPUT
Main Wide UPS mode Voltage range 90 ~ 295 ± 10 VAC
Main UPS mode Voltage range 180 ~ 265 ± 10 VAC
OUTPUT
Voltage (Mains mode) Same as Input
Frequency (Mains mode) Same as Input (41-65 Hz)
Wave Form (Mains mode) Same as Input
Rated Voltage (Backup mode)* 230 VAC ±10%
Rated Frequency (Backup mode) 50Hz ± 0.1 Hz
Wave Form (Backup mode) Pure Sine Wave
SOLAR
Max Input Solar PV (V) 25 V 50 V
Max PV Watt Wp 800 Wp 1600 Wp
Voltage (Voc) 19~25 V 38~50 V
Voltage (Vmp) 17-19 V 34~39 V
Max PV Charging Current (A) 50 A
BATTERY
Capacity 100Ah-250Ah
Type Tubular,Flat Plate, SMF/VRLA or Any Local Battery Compatible
DC Voltage 12V 24V
PROTECTIONS
Parameters PV reverse polarity, Low battery, Reverse battery, PV high, Battery high voltage, Overload, Output short circuit, Over temperature, Resettable Circuit Breakers at Input mains
SETTABLE OPTIONS
Battery Charging Current (Mains mode) (A)
(ON/OFF Switch any position)		 20/15(DEFAULT)/10/5/0 AMPS**
UPS/WUPS mode selection
(ON/OFF Switch any position)		 WUPS(default) 90V TO 295V
Priority selection
(ON/OFF Switch any position)***		 Grid(default)/Solar/User1/User2/Normal
Battery Type selection
(ON/OFF Switch ON Position only)		 Tubular(default)/LA/Li-ion****
Battery Low setting per battery)
(ON/OFF SWITCH OFF position only)		 11/10.8/10.5(default) V
LCD DISPLAY
Parameters Grid Voltage, Battery Voltage, Output Voltage, Charging Current, PV Voltage, PV Current, Load %, Overload, Shortcircuit, Low Battery etc
ENVIRONMENTAL
Operating Temperature 0-45⁰C (32-113⁰F)
Storage Temperature 0-45⁰C (32-113⁰F)
Humidity 0-95% RH non condensing
PHYSICAL
Net weight (Kg) 8.0 8.4 9.4 11.2 14.6 15.1
Gross weight (Kg) 8.8 9.2 10.2 12 15.9 16.4
Dimensions (LXWXH) mm 295 X 288.3 X 134.5 295 X 309.8 X 182.5

*Under standard operating condition of battery fully charged and availability of solar power

** Use appropriate battery grid charging current as per manufacturer recommendation while using solar recommended Battery AH is 180Ah to 250AH

***per battery Grid 12.4V/Solar 11.2V/User1 11.5V/User2 11.8V/Normal (like inverter only with solar charging)

**** Li-ion Battery can be added as per customer battery specifications
