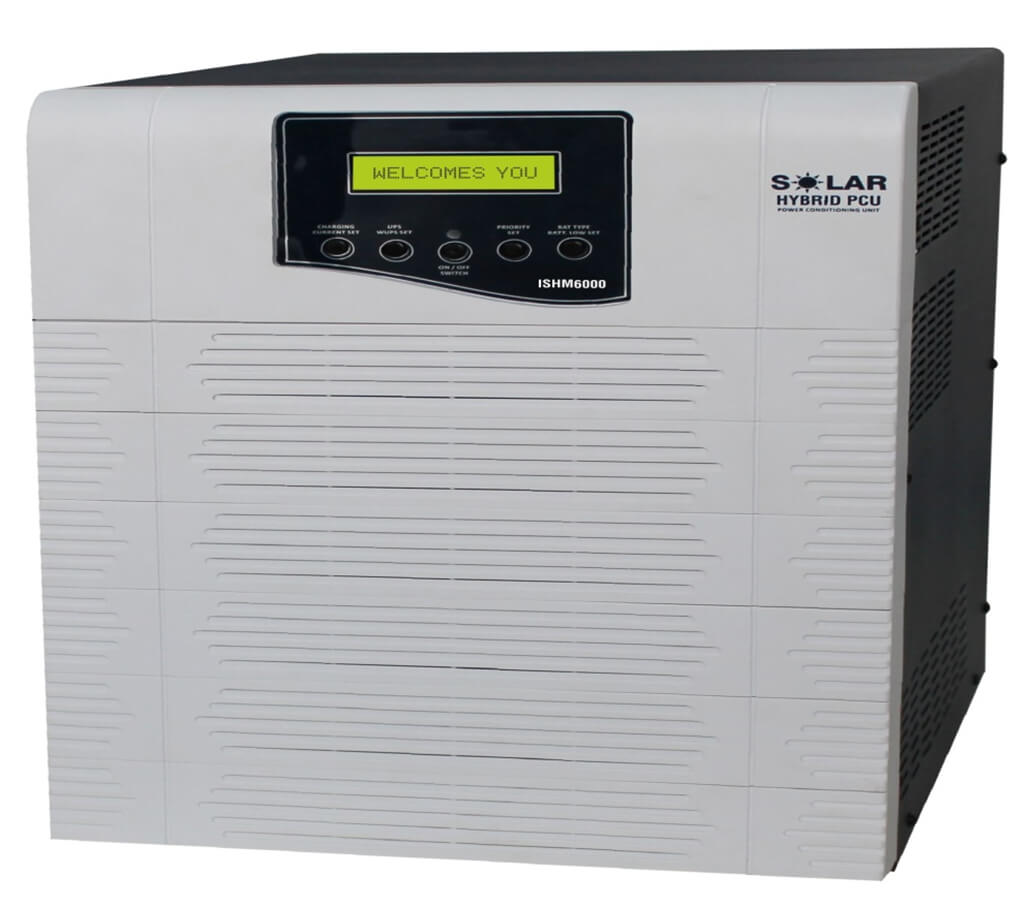

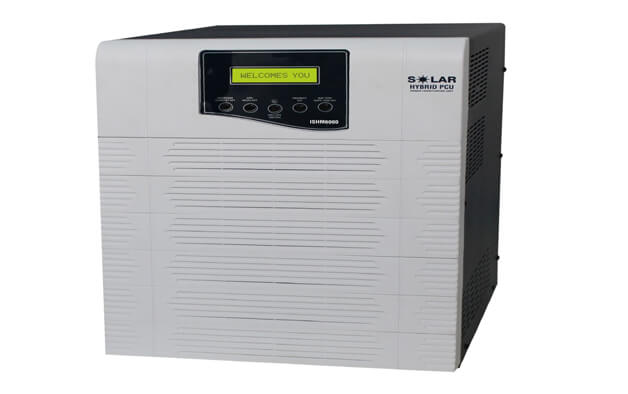

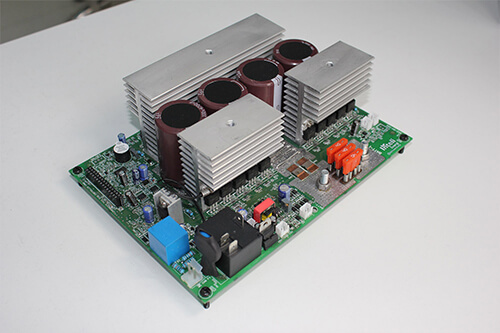

MPPT Solar Hybrid PCU

MPPT SOLAR HYBRID PCU SERIES

SALIENT FEATURES

  • Intelligent Selection Of Energy Sources Like Solar, Battery And Mains For Optimal Use Of Solar.
  • Built In Heavy Duty MPPT Solar Charge Controller.
  • Smart Battery Management System For Longer Battery Life.
  • Grid Charging Enable / Disable Option.
  • SOLAR And Grid Current Sharing.
  • LCD Display With Front Switch Settable Options.
  • Protection Against Overload, Short Circuit, Back feed, Battery Deep Discharge.
  • Pure Sine Wave Output Ensuring Noise Less Operation.
  • High Surge Handling Capability For Mixed Load.

PROGRAMMABLE USER SETTINGS

Solar current to battery current setting, for using different battery AH and current limit to battery

  1. 0 to 60A or 0 to 50A(DEPENDING ON MODEL)

Grid Charging Current

  1. 0 TO 30A or 0 to 20A(DEPENDING ON MODEL)

UPS/WUPS – Mains Voltage Range setting

  1. Mains Low Settings : 90V TO 180V
  2. Mains High Settings : 250 TO 300V

SOLAR PRIORITY SETTING

  1. PV-BA-MA: Power usage priority is set first PV then Battery and then Mains as per depth of
    discharge (DOD) voltage set through keypad , auto back-up mode to mains mode transfer will happen when battery
    voltage fall down to set DOD level of battery bank voltage ( default set voltage is 45Vd.c ± 0.8Vd.c) and mains to back-
    up mode transfer will occur after pre-determined time attaining boost charge level along with PV voltage and power
    must be in working range.
  2. PV-MA-BA: Power usage priority is set first PV then Mains and there after Battery, auto back-up mode to mains mode transfer
    will happen when battery voltage fall down to nominal battery bank voltage (48Vd.c± 0.8Vd.c) and mains to back-up
    mode transfer will occur after pre-determined time attaining boost charge level along with PV voltage and power
    must be in working range.
  3. SOLAR ONLY: The unit will always work in backup to optimise power from solar, no charging from Mains.
  4. INVERTER MODE: The unit will act as normal inverter with charging from mains. Will transfer to backup mode only
    when mains is out of range.

Battery Type setting

  1. Flat Plate, SMF-VRLA, Tubular, Local Lead Acid And Lithium Ion.

TECHNICAL SPECIFICATIONS OF MPPT SOLAR HYBRID PCU SERIES

MPPT SOLAR HYBRID PCU ISHM/DSHM4000 ISHM/DSHM6000
3500VA/48V 5000VA/48V
2800W 4000W
INPUT
Default Mains Range 90 ~ 280 ± 10 VAC
Settable Mains Range Low Cut(90 ~ 180 ± 10 VAC), High Cut (250 ~ 300 ± 10 VAC)
OUTPUT
Voltage (Mains mode) Same as Input
Frequency (Mains mode) Same as Input (41-65 Hz)
Wave Form (Mains mode) Same as Input
Rated Voltage (Backup mode)* 230 VAC ±10%
Rated Frequency (Backup mode) 50Hz ± 0.1Hz
Wave Form (Backup mode) Pure Sine Wave
SOLAR
Max Input Solar PV (Voc) 60-175 V 60-175 V
Max PV Watt Wp 3200 Wp 4200Wp
Max PV Charging Current (A) 60 A 80 A
“Solar Array configuration, (Recommended)” Single array :
260Wp, 60cell PV module = Series 4 & Parallel string 3, (3120Wp)
320Wp ~ 350Wp, 72cell PV module = Series 3 & Parallel string 3, (3150Wp)		 Single array :
260Wp, 60cell PV module = Series 4 & Parallel string 4, (4160Wp)
320Wp ~ 350Wp, 72cell PV module = Series 3 & Parallel string 4, (4200Wp)
BATTERY
Capacity 100Ah-250Ah
Type settable Tubular,Flat Plate, SMF/VRLA or Any Local Battery Compatible
DC Voltage 48V
PROTECTIONS
Parameters PV reverse polarity, Low battery, Reverse battery, PV high, Battery high voltage, Overload, Output short circuit, Over temperature, MCB Input mains, MCB PV Input, MCB battery.
SETTABLE OPTIONS
Battery Charging Current (Mains mode) (A) 20/15(DEFAULT)/10/5/0 AMPS**
MAX Solar Battery charger Current Settable 5A to 60A 5A to 60A
Mains Low Cut/High Cut range WUPS(default) 90V TO 295V
Priority selection Grid(default)/SOLAR(Settable DOD)/SOLAR ONLY
Battery Type selection Tubular(default)/LA/Li-ion***
Boost Voltage in Mains mode/Solar mode 55.6Vd.c. to 59.6Vd.c.± 0.8V
Float Voltage in Mains mode/Solar mode 53.2Vd.c. to 55.6Vd.c.± 0.8V
LCD DISPLAY
Parameters Grid Voltage, Battery Voltage, Output Voltage, Charging Current, PV Voltage, PV Current, Load %, Overload, Shortcircuit, Low Battery etc.
ENVIRONMENTAL
Operating Temperature 0-45⁰C (32-113⁰F)
Storage Temperature 0-45⁰C (32-113⁰F)
Humidity 0-95% RH non condensing
PHYSICAL
Net weight (Kg) 31.79 coming soon
Gross weight (Kg) 33.319 coming soon
Dimensions (LXWXH) mm 375x295x445 375x295x445

*Under standard operating condition of battery fully charged and availability of solar power

**Use appropriate battery grid charging current as per manufacturer recommendation while using solar recommended Battery AH is 180Ah to 250AH

***Li-ion Battery can be added as per customer battery specifications
