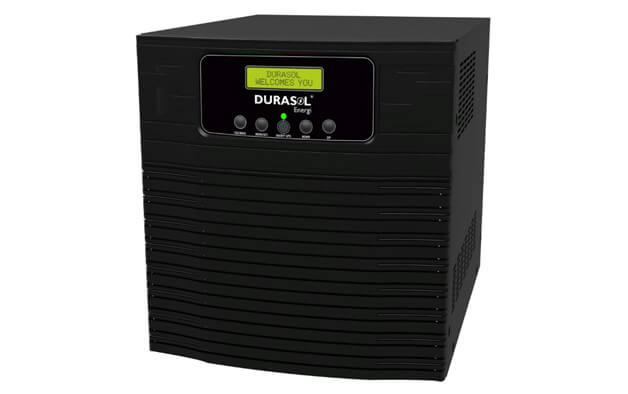

Mid Cap Sine Wave UPS

MID CAPACITY PURE SINE WAVE UPS SERIES

SALIENT FEATURES

  • Pure Sine Wave output Ensuring Noiseless Operation.
  • Built-In Heavy Duty & Efficient Grid Charger For Faster Charging.
  • Improved Input Power Factor During Grid Charging Mode Hence Reduced Electricity Bills.
  • Best Suited For Cyclic Applications / Longer And Frequent Power Cut Areas.
  • Built-In Intelligent Multi Stages Battery Management System For Longer Life Of Battery.
  • Gravity Profile Management – Best Suitable For New / Old Aged Battery.
  • Dual mode of working
    1. Wide Mains Input Voltage Range (W-UPS) For Normal Household/Office Equipments.
    2. Narrow Mains Input Voltage Range (UPS) For IT Equipments.
  • High Surge Handling Capability For Mixed Load.
  • Protection Against Overload, Short Circuit, Back feed, Battery Deep Discharge.
  • Built-In Temperature Controlled Cooling Fan For Better Thermal Management To Ensure Optimal Performance And Life.
  • User Friendly Front settable switches for Setting Mains Voltage, Mains Charging Current, Battery Type.
  • User Friendly Graphical LCD Display.

TECHNICAL SPECIFICATIONS OF MID CAPACITY SINE WAVE UPS SERIES

MID CAPACITY SINEWAVE UPS SERIES ISW/DSW4000 ISW/DSW6000
3500VA/48V 5000VA/48V
2800W 4000W
INPUT
Default mains range 90 ~ 280 ± 10 VAC
Settable mains range Low cut(90 ~ 180 ± 10 VAC), High Cut(250 ~ 300 ± 10 VAC)
OUTPUT
Voltage (Mains mode) Same as Input
Frequency (Mains mode) Same as Input (41-65 Hz)
Wave Form (Mains mode) Same as Input
Rated Voltage (Backup mode)* 230 VAC ±10%
Rated Frequency (Backup mode) 50Hz ± 0.1 Hz
Wave Form (Backup mode) Pure Sine Wave
BATTERY
Capacity 100Ah-250Ah
Type settable Tubular,Flat Plate, SMF/VRLA or Any Local Battery Compatible
DC Voltage 48V
PROTECTIONS
Parameters Low battery, Reverse battery, Battery high voltage, Overload, Output short circuit, Over temperature, MCB Input mains, MCB battery.
SETTABLE OPTIONS
Battery Charging Current (Mains mode) (A) 20/15(DEFAULT)/10/5/0 AMPS**
Mains Low Cut/High Cut range WUPS 90V To 300V
Battery Type selection Tubular(default)/LA/Li-ion***
LCD DISPLAY
Parameters Grid Voltage, Battery Voltage, Output Voltage, Charging Current, Load %, Overload, Shortcircuit, Low Battery etc.
ENVIRONMENTAL
Operating Temperature 0-45⁰C (32-113⁰F)
Storage Temperature 0-45⁰C (32-113⁰F)
Humidity 0-95% RH non condensing
PHYSICAL
Net weight (Kg) 27.4 31.5
Gross weight (Kg) 28.8 33.0
Dimensions (LXWXH) mm 350x295x335 385x295x335

*Under standard operating condition of battery fully charged

**Use appropriate battery grid charging current as per manufacturer recommendation

*** Li-ion Battery can be added as per customer battery specifications
